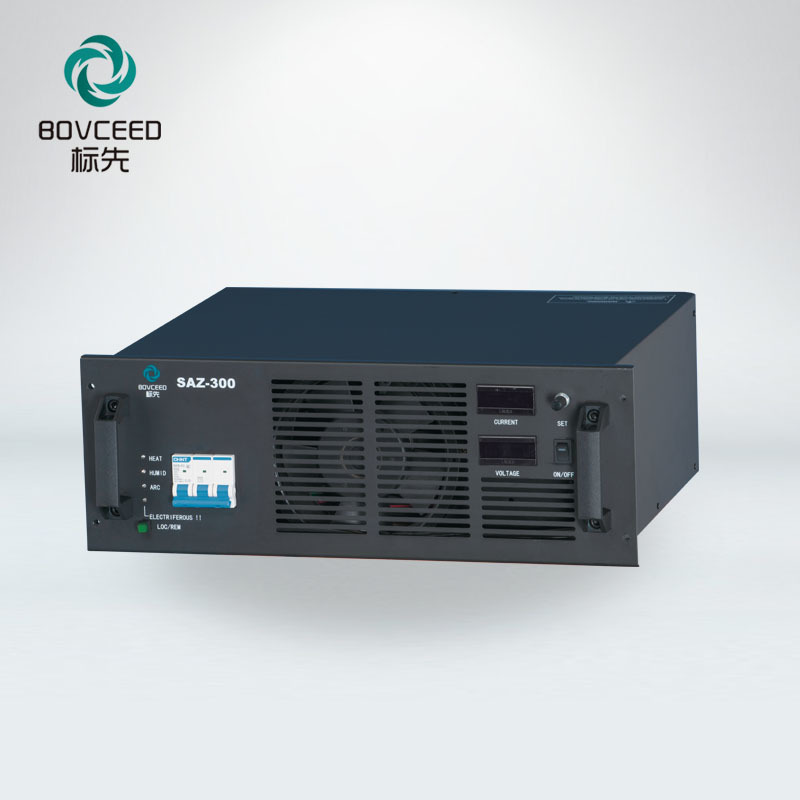

SAZ series

Description

Technical Specifications of Vacuum Arc Ion Plating Arc Power Supply, SAZ Series

SAZ type arc power supply works in high frequency conversion mode with DC output, and the power supply current adjustment is realized by changing the pulse width of high frequency conversion. The circuit adopts zero point voltage switching (ZVS) technology, low loss, good electromagnetic compatibility, using current sensor as current sampling, with high current stability rate. Due to the high power of the power supply, the whole series adopts water cooling, which is suitable for large flat targets and columnar targets as well as long time coating use.

Power

SAZ-250 8.5KW; SAZ-315 11KW; SAZ-400 14KW

Input power

Three-phase four-wire system 380V±10％50-60Hz

Output Voltage

No load 80V

Output Current

SAZ-250 260A; SAZ-315 320A; SAZ-400 410A

Output Accuracy

Better than 1%

Cooling Mode

Water-cooled

Auxiliary Function

High temperature, condensation alarm

Load Rate

100%

Service Environment

Ambient temperature: 0-40℃
Ambient humidity: Relative humidity ≤85%
Clean air, no dust, no corrosive and flammable gas, good ventilation

Cooling water

Clean without any minerals and other soluble substances
Water temperature 20-30℃
Pressure 0.15±0.05Mpa

Communication Mode

Analog/RS485/RS232
