SAL series

Description

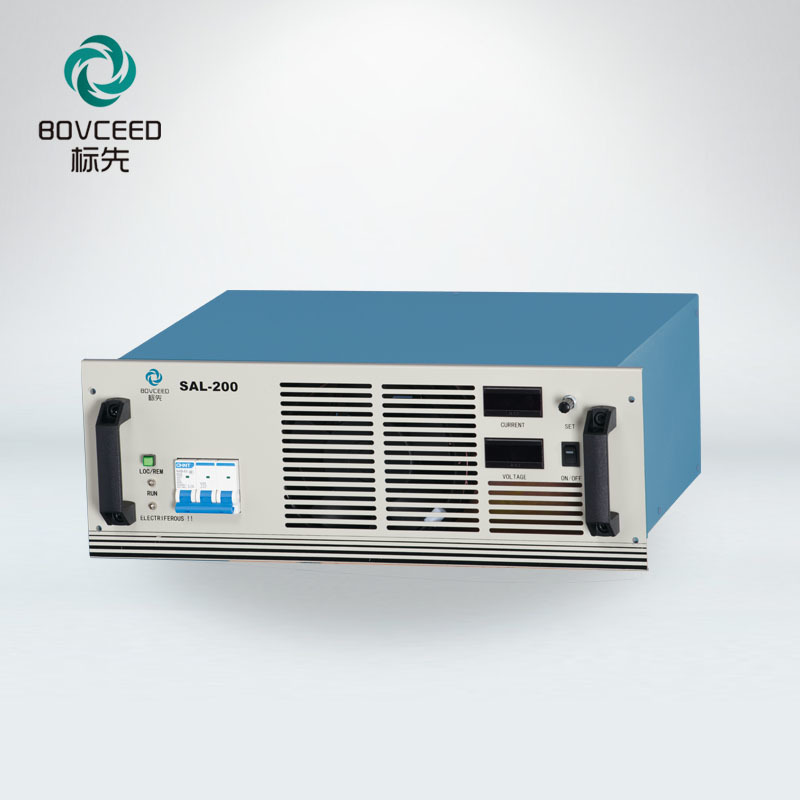

Technical Specifications of Arc Power Supply, SAL-200

SAL-200 type arc power supply works in high frequency conversion mode with DC output, and the power supply current adjustment is realized by changing the pulse width of high frequency conversion. Power supply has load compensation circuit, good load characteristics, due to the use of current sensor as current sampling, there is a high rate of current stability, suitable for all kinds of decoration and tool coating. The power supply adopts ZVS soft switching technology, with high efficiency and good electromagnetic compatibility. Meanwhile, this series power supply has high cost performance.

Power

6.5KW

Input power

Three-phase four-wire system 380V±10％50-60Hz

Output Voltage

No load 80V

Output Current

0-200A

Output Accuracy

Better than 1%

Cooling Mode

Air-cooled

Load Rate

100% at 150A; 70% at 200A (Cycle per 60 minutes)

Service Environment

Ambient temperature: 0-40℃
Ambient humidity: Relative humidity ≤85%
Clean air, no dust, no corrosive and flammable gas, good ventilation

Communication Mode

Analog/RS485/RS232
