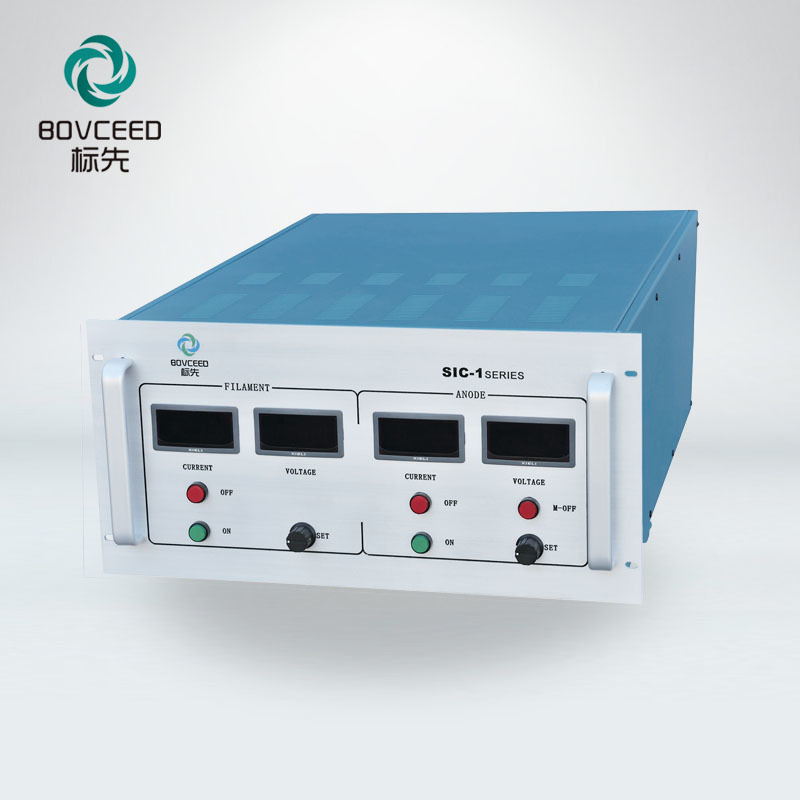

SIC-I series

Description

Technical Specification of Ion Source Power Supply, SIC- I Series

SIC- I series of ion source power supply is used as a working power for Hall ion source, providing filament supply and anode supply required by the work. Both the filament supply and the anode supply of SIC I series of ion source power supply have applied the switching mode, with good stability and high working efficiency.

Power

Filament supply 1.5kW, anode supply 5kW

Input Power

Three-phase four-wire system 380V±10％50-60Hz

Filament Supply

Output voltage AC36V



Output current AC40A

Anode Supply

Output voltage DC300V no load



Output current DC20A

Output Current Accuracy

Better than 1%

Cooling Mode

Air-cooled

Service Environment

Ambient temperature: 0-40℃
Ambient humidity: Relative humidity ≤85%
Clean air, no dust, no corrosive and flammable gas, good ventilation

Communication Mode

Analog

Note: The output characteristics of the power supply can be adjusted according to the needs of use.
